Universal CO2 Laser Cutting And Engraving Control Board System AWC7824K

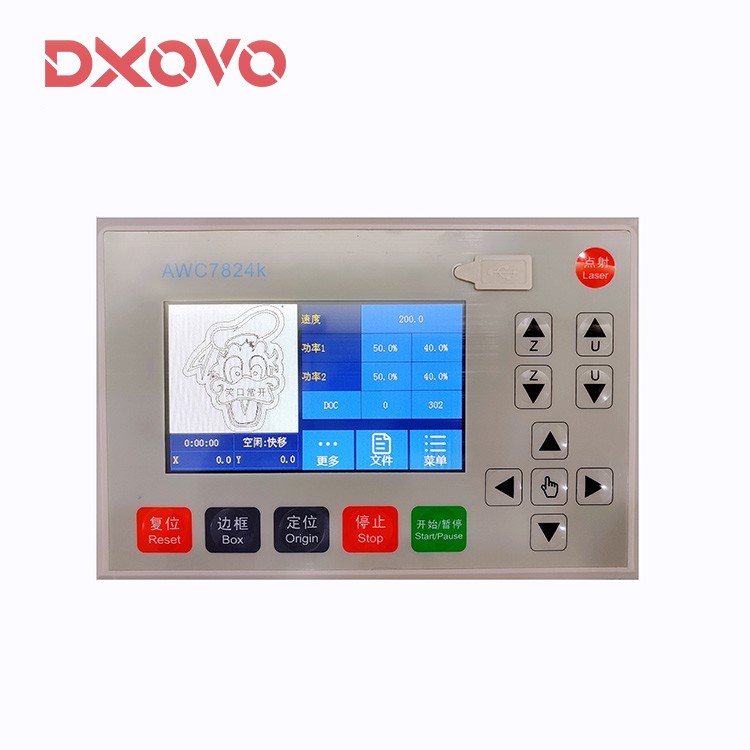

DXOVO laser focuses on motion control system and provides intelligent motion control solutions,Laser cutting motion controller AWC7824k control panel, on the basis of inheriting all the excellent functions of AWC7824, also has key operation function

CO2 laser controller board Model: AWC7284K Laser cutting control system.

Application industry: suitable for advertising decoration, printing and packaging, clothing leather, cloth plush toys, computer embroidery and other industries.

Categorys : Control Systems

Sales hotline : +86 13725766389 Lucy Guo

Email : sales@dxovo.com

WhatsApp : +0086 13725766389

Product description

Features

✔ Using a 4.3-inch true color touch screen, the buttons and touch are combined into one, and the operation feels strong.

✔ Adopt a new 32-bit high-speed DSP to make the system run faster and more stable.

✔ The product is easy to operate, and after-sales training saves time.

✔ Support U disk offline file preview function, real-time display of laser head movement trajectory.

✔ The device parameters can be set completely away from the PC.

✔ The full optocoupler completely isolates the external electromagnetic interference, and has strong anti-static performance, which makes the system work more stable and reliable.

✔ Support multiple languages.

✔ Support USB2.0 high-speed interface, U disk read and write files more stable, can identify various brands of U disk.

✔ Support network communication and USB communication, the transmission speed is faster and more stable.

✔ Support Z-axis autofocus, Y Z-axis dual drive control, and double heads move each other.

✔ Supports three different blowing styles, namely, full blowing, light blowing, and layer blowing.

✔ Intelligent diagnosis system itself failure.

✔ One key to switch the way to manually move the axis.

✔ A variety of user-friendly positioning modes and return modes are available to facilitate customers with different habits to operate the machine.

✔ One-key continuous cutting, it is convenient to continue cutting after the file being processed is interrupted in any way.

✔ When debugging the cutting effect, the setting parameters are few, and the user is easy to hold.

✔ Supports Y-axis drum cutting, which is convenient for processing the whole bundle of braided materials.

✔ A variety of humanized automatic feeding functions.

✔ Support super format cutting, mirror cutting function.

✔ Support dispensing and line drawing functions.

Tags： co2 laser controller board laser control board Laser Cutting Motion Controller

Technical Parameters

Model	AWC7824k
Input voltage	DC24V,3A
Input	6-way general photoelectric isolation input
Output	8 general-purpose opto-isolated OC gate outputs
Control axes	X,Y,Z,U axis
Control the number of laser heads	Double
Supported lasers	CO2 Glass Laser Tube / RF laser tube
Control Laser energy	0-100%, 0.1% Continuously adjustable
Cutting accuracy	±0.01mm
Continuous cutting	Support interrupted and then continue to cut
Communication port	Support USB high-speed reading and network LAN port communication
Compatible systems	WinXP, Vista, Win7, Win8, Win10,win11
Supported Graphics Formats	G-code,AI,SVG,PDF,DXF,PLT,DST,DSB,UD5,BMP,JIF,JPG,PNG etc.
Compatible software	LaserCAD, lightburn (plug-in support Coreldraw,Auto cad,Adobe Illustrator)
